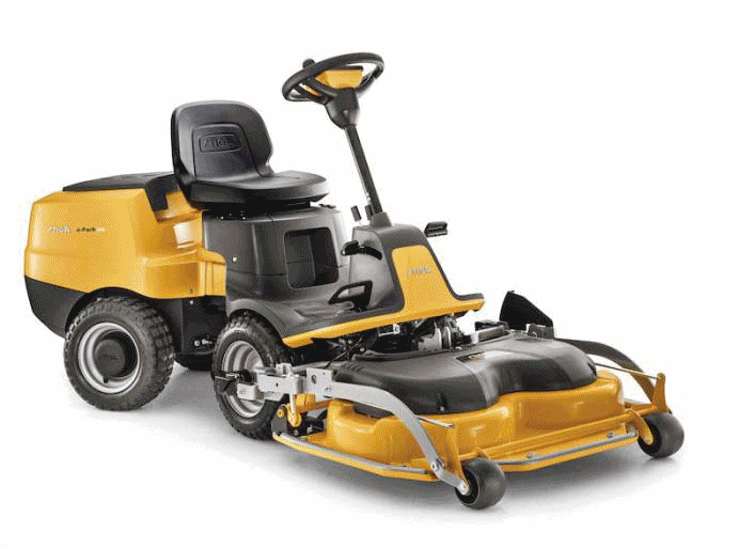

The STIGA E-Park 220 is the leading front-cut ride-on mower powered by lithium-ion batteries. The E-Park combines comfort, low maintenance and no carbon dioxide emissions – all the advantages of a battery-powered machine in a ride-on mower. Easy to use with a high-resolution colour display providing an instant overview of settings and performance, electrical cutting height adjustment and cruise control, the E-Park 220 is quiet too. Articulated steering means the E-Park 220 can be manoeuvred around complex obstacles and steered through narrow spaces, while QuickFlip technology allows you to quickly raise the cutting deck in two simple motions for cleaning and maintenance. In addition to the Multiclip mulching system, the cutting deck enables you to cut in rear discharge mode.
  • Electric motor powered by a 48v 95AH 15 cell lithium-ion battery
  • Electric transmission
  • RAC Quick Connect system supplied
  • Can be paired with a cutting deck with QuickFlip technology
  • Articulated steering
  • Charge time of 4 Hrs
  • capable of cutting maximum of 2000 m²

Model

e-Ride C500

e-PARK 220

Click Pictures to see preceeding models
1
1

Art number

2T2205481/ST1

2F5828001/ST1

Price

RRP: £4,249.00

RRP: £9399.00

Power Source

Lithium-ion Battery

Lithium-ion Battery

Battery Capacity

40 Ah

90 Ah

Cutting Method

Collecting

Combi - switch between Multiclip mulching and rear discharge

Minimum uncut radius

90 cm

N/A

Cutting width

84 cm

95 cm

Cutting height adjustment

Manual with lever

Electric

Cutting height positions

7 positions

N/A

Cutting height range

25 - 80 mm

N/A

Blade engagement type

Electric

N/A

Number of blades

2

N/A

Additional cutting method

Rear discharge, multiclip mulching

N/A

Traction

Rear-wheel drive

Rear-wheel drive

Transmission type

Electric

Electric

Transmission method

Pedal-operated

Pedal-operated

Collector type

Textile

N/A

Collector capacity

240 L

N/A

Seat type

N/A

Standard

Seat adjustment

Screws

Locking knobs

Dashboard

Yes with LED

No

Steering wheel

STIGA ergonomic with soft grip

Adjustable with spinner

Front wheel size

15x6.00-6

14.3x5.60-8

Rear wheel size

18x8.50-8

14.3x5.60-8

Hour meter

No

Yes - on display

Cruise control

Yes

No

Headlights

LED

No

Bumper

Yes

N/A

Washing link

Yes

N/A

Cup holder

Yes

No

Pivoting front axle

Yes

N/A

Antiscalp wheels

2

N/A

Safety system

Seat with Safety Contact Breaker

N/A

Battery charger

Single standard

N/A

Trailer hitch kit

Included

N/A

Guaranteed sound power level (LwA) - dB(A)

N/A

97

Max vibration on driver's seat (m/s2)

N/A

0.8

Max vibration on steering wheel (m/s2)

N/A

1.4

Measured sound power level dB(A)

N/A

95

Measured sound pressure level at operator ear dB(A)

86.54

81

Pack dimensions (LxWxH)

1700 x 1120 x 837

2044 x 915 x 1212

Pack weight

235 kg

271.5 kg

Product weight

168 kg

225 kg

Product length

2338 mm

1681 mm

Product width

880 mm

770 mm

Product height

1100 mm

1171 mm
