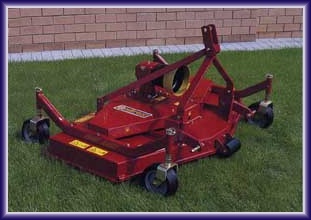

Easily connected to the tractors 3 point linkage this versatile machine is operating in minutes. Located on each corner the 4 rubber castor wheels can be set precisely, prevent scalping, and are easily adjusted without the use of tools.
Model |
MR 150 |
MR 180 |
MR 235 |
Working Width |
1500mm |
1830mm |
2350mm |
Power (HP) |
15-40 |
20-40 |
30-60 |
PTO rpm |
540 |
540 |
540 |
Blade tip speed |
2590m/min |
3250m/min |
2720m/min |
Cutting Height |
20-100 |
20-100 |
20-100 |
Weight |
210kg |
245kg |
310kg |
Standard Features:
SPECIFICATIONS |
SM 120 |
SM 150 |
SM 180 |
Cutting Width |
48" |
60" |
71" |
Cutting Height |
1" to 4" |
1" to 4" |
1" to 4" |
Number of Blades |
3 |
3 |
3 |
HP Required |
12 to 20 |
15 to 30 |
20 to 40 |
Blade RPM |
3250 |
2630 |
2230 |
PTO Hitch |
540 |
540 |
540 |
3 Point Approx. |
CATEGORY 1 |
CATEGORY 1 |
CATEGORY 1 |
Weight lbs. |
371 |
405 |
500 |
Wheels |
210 x 80 |
210 x 80 |
210 x 80 |
|
