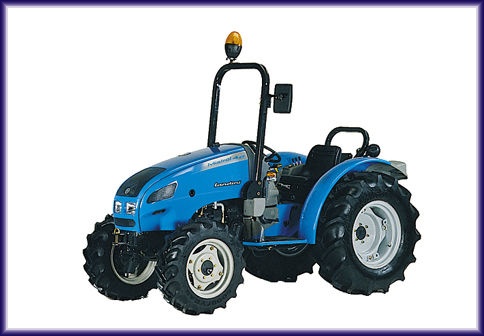

The MISTRAL series has fluid-cooled 3 and 4-cylinder Yanmar engines that offer high performances in terms of power, engine torque and torque reserve. These features, along with tried and tested reliability and a compact shape, are important features for modern enterprises. The modular transmissions, which reflect the LANDINI philosophy, are simple and reliable, but their main feature is the low power draw typical of mechanical transmissions; the efficiency of the PTO is as much as 95% of rated engine power.The optimal 29 Kg/HP weight/power ratio allows the tractor to almost skim over lawns. The front hydraulic power lift with its 350 Kg lifting capacity, the 1000 RPM front PTO and front hydraulic couplings make MISTRAL the right choice when front implements must be used. MISTRAL is available with 38x14-20" rear garden tyres in the 2 and 4 WD versions.

Mistral

40

45

50

Engine

Yanmar direct injection

3TNE88-LAN

4TNE84-LAN

4TNE88-LAN

Displacements / N° of cylinders

cc 1642/3

cc1995/4

cc 2189/4

Max power DIN

hp/kw 35/25,7

hp/kw 40/29,4

hp/kw 46/34,6

Transmission

rev. shuttle + basic gearbox 12FWD+12REV

STD

STD

STD

rev. shuttle + basic gearbox + creeper 16FWD+16REV

OPT

OPT

OPT

Hydraulic power lift

lifting capacity

kg 1200

kg 1200

kg 1200

Front power lift

lifting capacity

kg 400 OPT

kg 400 OPT

kg 400 OPT

Weights and dimensions

wheelbase (2WD / 4 WD)

mm 1680/1700

mm 1680/1700

mm 1680/1700

minimum width

mm 1322

mm 1380

mm 1384

total weight without ballast (120 kg) (2WD / 4 WD)

kg 1370/1450

kg 1380/1460

kg 1380/1460
