Shibaura

Ishikawajima Shibaura Machinery Co. Ltd. was established in 1950 by two companies, Toshiba Corp. (Tokyo-Shibaura-Electric) and IHI (Ishikawajima Harima Industries). Originally Shibaura started as manufacturer of engines, garden tractors and fire pumps. In 1961 a factory was completed for the production of a complete line of tillers and compact tractors up to 40hp. In 1978 Shibaura started the production of tractors over 50hp. Shibaura is young and dynamic company, which grows extremely fast to European standards. At this moment Shibaura has two factories. One in Matsumoto for the production of tractors, this factory has a total annual capacity of 40,000 units. The second factory in Yokohama is for the production of frontmowers, brushcutters and powertools.

Shibaura products

The range of Shibaura products consists of: tractors, lawn- and gardentractors, frontmowers, transporter, brushcutters and a complete range of powertools. These products have build up a reputation of fine quality over the years. Constantly research and development guarantees a fast adoption of new requirement from users all over the world. Not only existing products are improved constantly also new products are added to the programme such as brushcutters, powertools and mowers. Both lawn- and gardentractors and professional frontmowers of 21, 28 and 35HP with very advanced automatic 4WD.

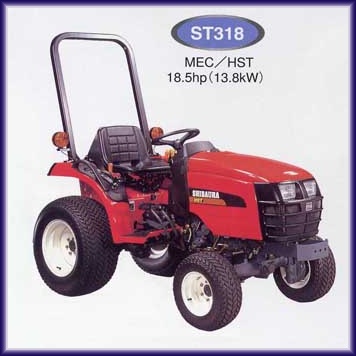

ST318MEC - 18 hp 3 cylinder water cooled diesel engine, mechanical transmission with 9 forward gears & 3 reverse gears, rear and mid PTO, 3 point linkage,4 wheel drive, power steering, single double acting spool valve, roll bar, turf tires.

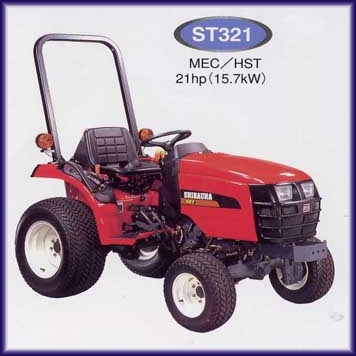

ST321HST - 21 hp 3 cylinder water cooled diesel engine, hydrostatic transmission with high & low ratios, rear and mid PTO, 3 point linkage,4 wheel drive, power steering, cruise control, single double acting spool valve, roll bar.

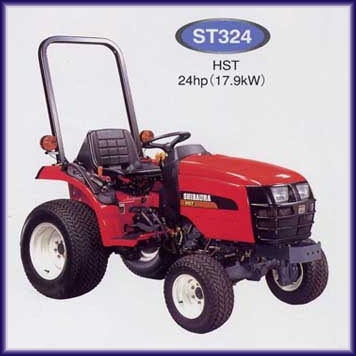

ST324HST - 24 hp 3 cylinder water cooled diesel engine, hydrostatic transmission with high, medium & low ratios, rear and mid PTO, 3 point linkage, 4 wheel drive, power steering, cruise control, single double acting spool valve, roll bar.
Specifications
4WD
ENGINE 3 cylinder water-cooled, Shibaura Diesel engine
15.7 kW / 21 HP (SAE) 13,8 kW/18.5 HP (DIN) 954 ccm
TRANSMISSION ST318 M: 9 forward and 3 reverse stages
forward: 0.5-17 km/h; Reverse: 0.95-13 km/h
ST318HST: Hydrostatic / 2 stages
forward: 0-17 km/h; reverse: 0-9.6 km/h
REAR PTO 540 U/min
MID PTO Standard with safety stop
3-POINT LINKAGE Cat 1, 670kg-lifting capacity
HYDR. CAPACITY 17 Litre/min., at 130 bar
TURNING RADIUS 190cm
POWER STEERING
TREAD front: 82-93cm; rear: 80-111cm
GROUND CLEARANCE 25.1cm
FUELTANK 18 litre
LXWXH 270x107x204cm
WEIGHT ST318M: 658kg ST318 HST: 690kg
Specifications
4WD
ENGINE 3 cylinder water-cooled, Shibaura Diesel engine
17.7 kW / 24 HP (SAE) 17.5 kW/21.3 HP (DIN) 1005 ccm
TRANSMISSION ST321 M: 9 forward and 3 reverse stages
forward: 0.5-17 km/h; Reverse: 0.95-13 km/h
ST321HST: Hydrostatic / 2 stages
forward: 0-17 km/h; reverse: 0-9.6 km/h
REAR PTO 540 U/min
MID PTO Standard with safety stop
3-POINT LINKAGE Cat 1, 670kg-lifting capacity
HYDR. CAPACITY 17 Litre/min., at 130 bar
TURNING RADIUS 190cm
POWER STEERING
GROUND CLEARANCE 27.3cm
FUELTANK 18 litre
LXWXH 270x104x204cm
WEIGHT ST321M: 678kg ST321 HST: 720kg
Specifications
4WD
ENGINE 3 cylinder water-cooled, Shibaura Diesel engine
20.2 kW / 27 HP (SAE) 17.9 kW / 24.3 HP (DIN) 1131 ccm
TRANSMISSION ST324HST: Hydrostatic / 2 stages
forward: 0-17 km/h; reverse: 0-9.6 km/h
REAR PTO 540 U/min
MID PTO Standard with safety stop
3-POINT LINKAGE Cat 1, 670kg-lifting capacity
HYDR. CAPACITY 17 Litre/min., at 130 bar
TURNING RADIUS 190cm
POWER STEERING
GROUND CLEARANCE 27.3cm
FUELTANK 18 litre
LXWXH 270x104x204cm
WEIGHT ST324M: 678kg ST324 HST: 720kg
